PHOSGO Go 3 Solar Bike - Deposit Reservation

Solar Panel Configuration: 4 integrated hub-mounted circular solar panels (50W each), total power 200W; The circular photovoltaic modules are perfectly fitted to the bike rims for seamless and integrated installation.

Solar Cell Technology: Adopts the world's most advanced BC Solar cell technology with a conversion efficiency of over 26%.

Panel Material &Performance: The solar panels are with a special surface treatment, boasting excellent wear resistance, scratch resistance, impact resistance and shock absorption. The panels are shatter-resistant and durable for long-term outdoor use.

Dual-Mode Solar Charging System: Patented innovative circuit system enables two charging modes—On-Riding Charging: Solar power directly supplies the motor during riding for real-time power supplement; Parked Charging: Solar power charges and stores energy in the lithium battery when the bike is stationary.

MPPT Controller: The solar system is equipped with an MPPT controller, which regulates the output current and voltage of the solar panels to ensure maximum power point tracking (MPPT) output. The MPPT controller is built into the frame tube.

Charging Feature: Light-activated charging for unlimited cruising range; Support AC mains charging.

Charging Efficiency:

l 5 hours of daily sunlight exposure: Approx. 80% battery charge​

l 2 hours of daily sunlight exposure: Approx. 30% battery charge

Solar Panel Waterproof Rating: IP65

Battery Specification: 48V 10.4Ah (499Wh) lithium battery, with BMS (Battery Management System) for intelligent overcharge/over-discharge protection; 0-80% charging duration: about 5 hours

Cruising Range:

- Pure Electric Mode: 80km

- PAS Mode (Medium Level): 120Km

- Charging Feature: When the battery is depleted, it can be charged by the Solar Charging System at any time in sunlight for endless range

Mains Charging Specification:  Support AC mains charging. AC 100-240V universal fast charge
Motor:

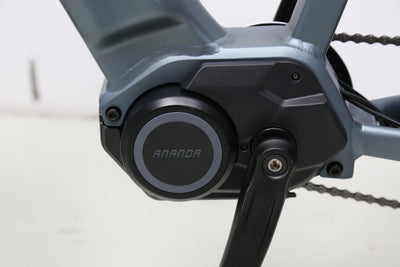

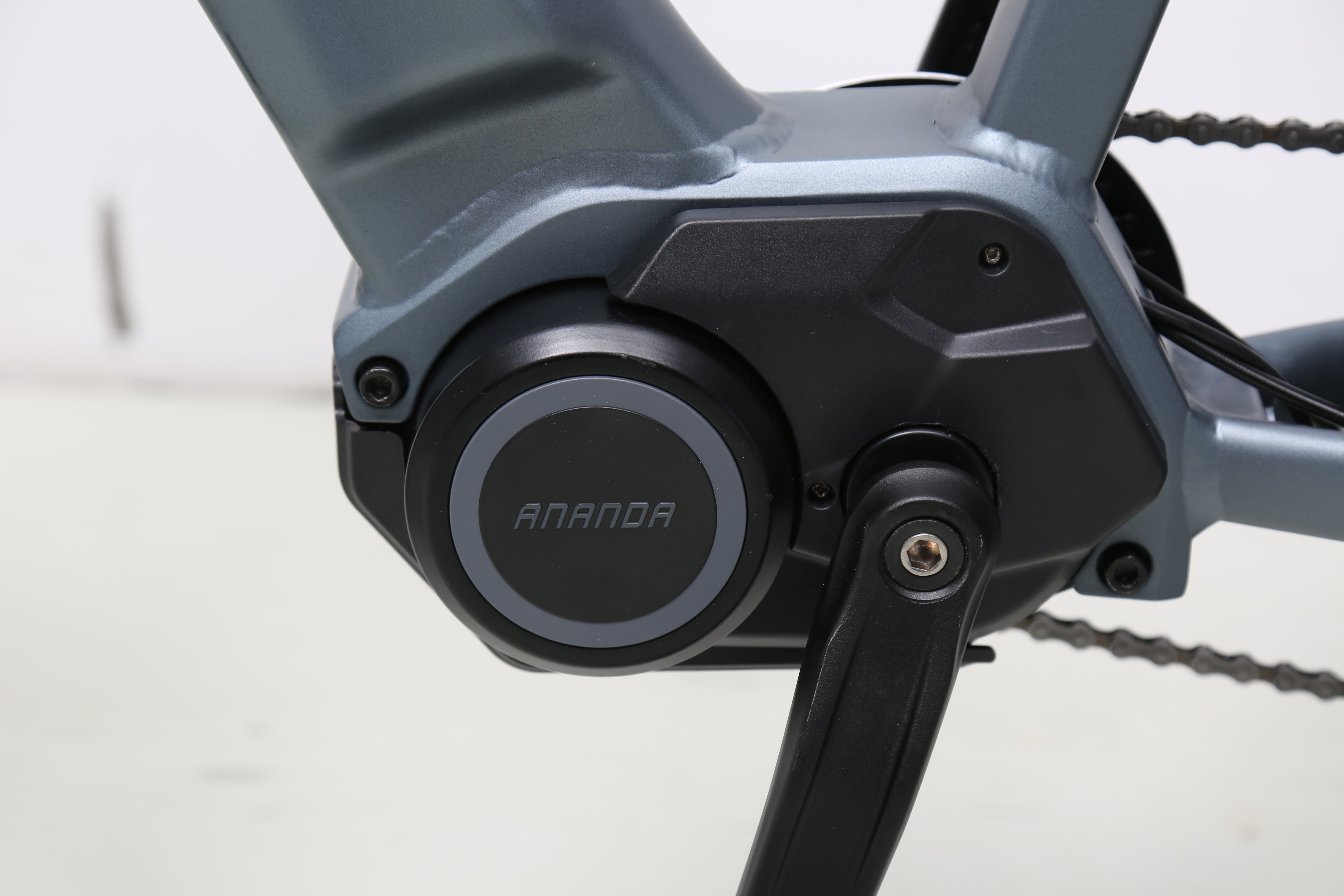

Ananda Mid-drive Motor, CAN bus communication supported; Rated power: 500W, Rated torque: 42N·m, Peak power: 900W, Peak torque: 130N·m; Max Climbing Gradient (Pure Electric/Throttle Mode): 10°, stable system operation and silent working mode; Waterproof Rating: IPX5

Drive System: PAS/Throttle, sine wave controller

PAS Levels: 5 Speed Levels with intelligent setting

Charge-Discharge Cycles: 500 times.

Communication Protocol: Whole vehicle equipped with CAN bus communication

Interconnection: Seamless data interaction and intelligent collaboration among APP, motor, battery, electric control, instrument, and solar system

Instrument Configuration: Intelligent LCD color screen with built-in GPS, Bluetooth and 4G communication modules. Supports motor/light on/off, displays battery level, speed, gear, time, mileage, and real-time navigation.

Custom APP: Supports iOS and Android systems; Functional list: Bluetooth vehicle on/off, remote 4G vehicle on/off, online after-sales service, built-in Google Maps, driving track recording, mall shopping, cycling community interaction, vehicle setting, one-click control for flexible riding operation

Anti-theft Solution: Built-in GPS positioning and 4G communication; Supports remote motor locking, remote vehicle position tracking, with anti-theft alarm function

Frame: 27.5" x 457MM, 6061 aluminum alloy, TIG welded
Head Tube Angle: 70°
Seat Tube Angle: 73°
Wheelbase: 1147.3mm
Seat Post Length: 350mm

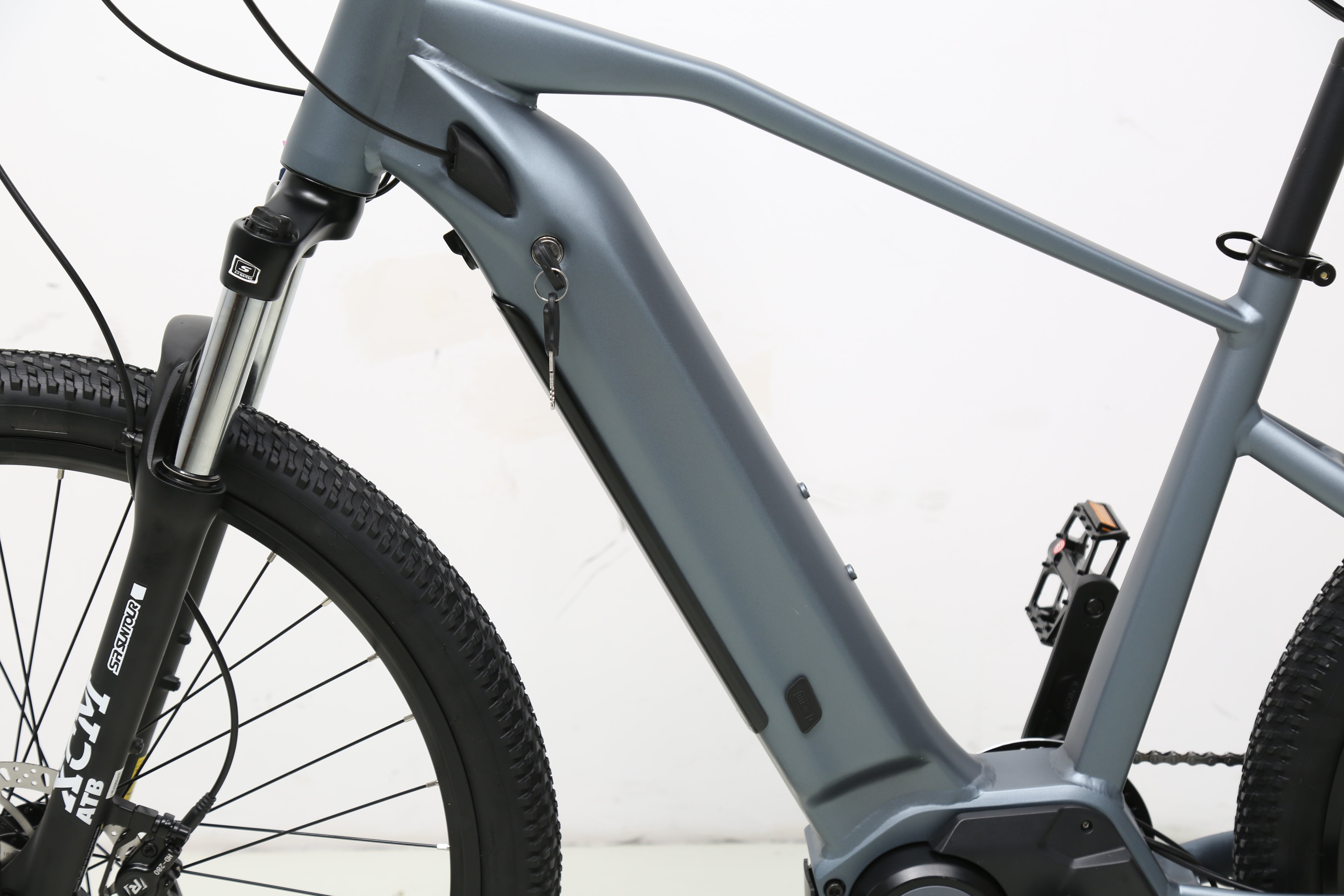

Fork: Suspension fork, alloy black crown, alloy outer leg, with hydraulic crown lock, travel: 100mm

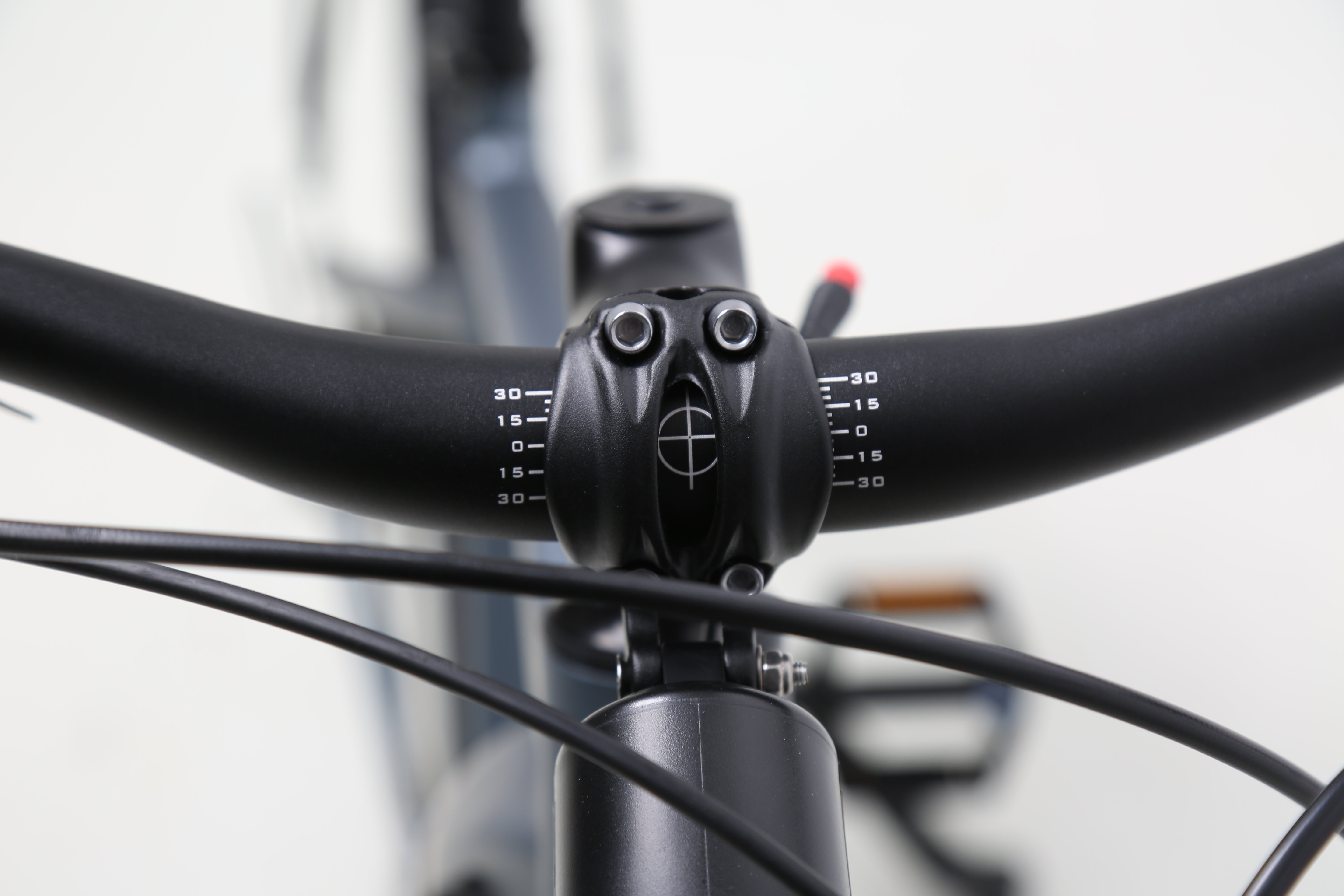

Handlebar: Alloy handlebar, with alloy threadless stem
Grip & Brake Lever Grip: Rubber non-slip grip + aluminum alloy brake lever grip
Seat Post & Seat Clamp: Aluminum alloy seat post + quick-release seat clamp
Brake/Shift Cable Housing: Stainless steel braided housing

Wheels：

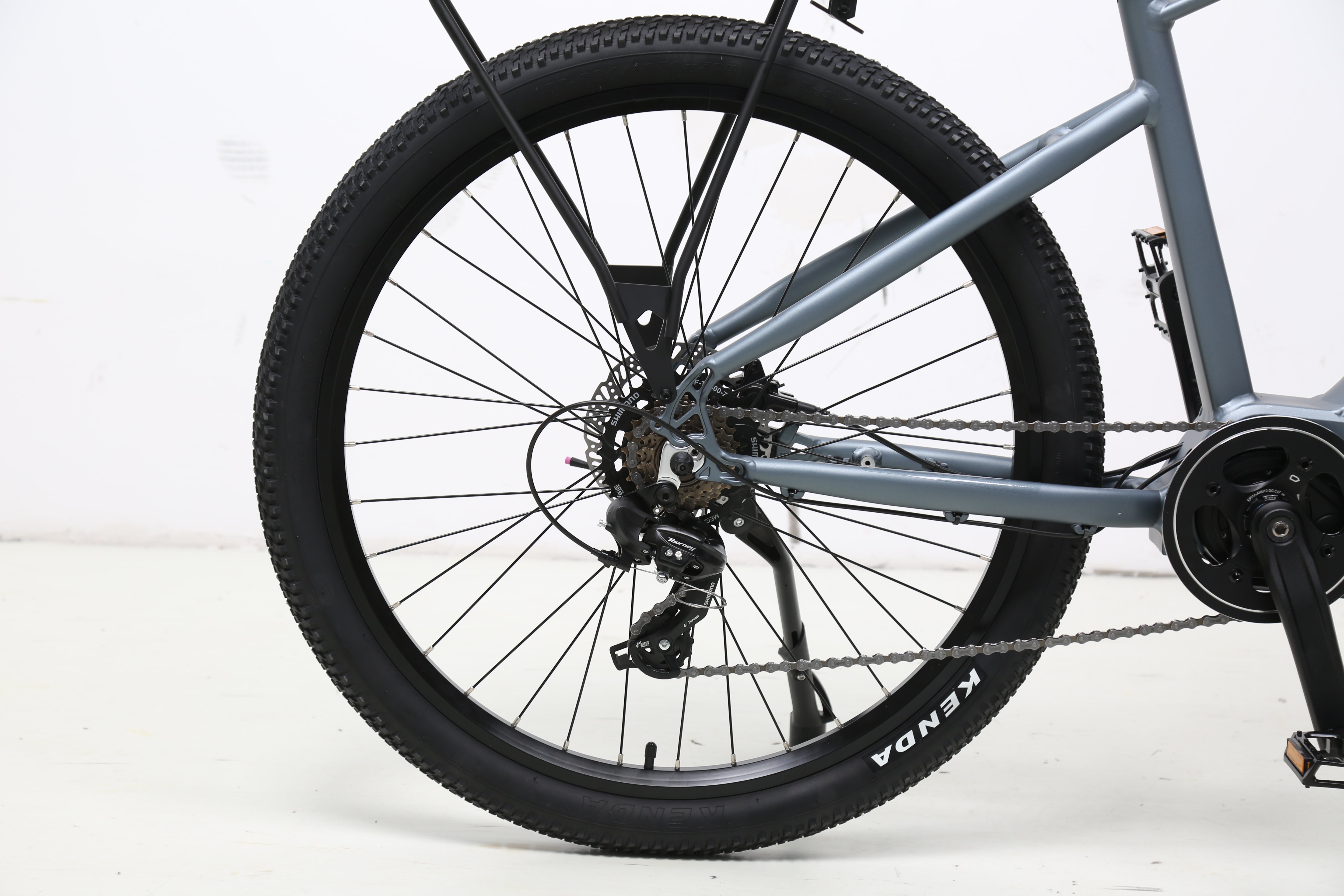

Rims: 27.5" x 2.1" x 13G x 36H, alloy double wall, black
Spokes: #304, 13G, stainless steel black spokes with brass nipple
Tire: 27.5" x 2.1", black, KENDA
F/R Custom-built Hub: F/R alloy hub for disc brake, without QR，Custom conductive slip ring built into the hub, compatible with the Solar Charging System
Chain: KMC Z7
Front Chainring: 38T
Rear Cassette: 14T-34T

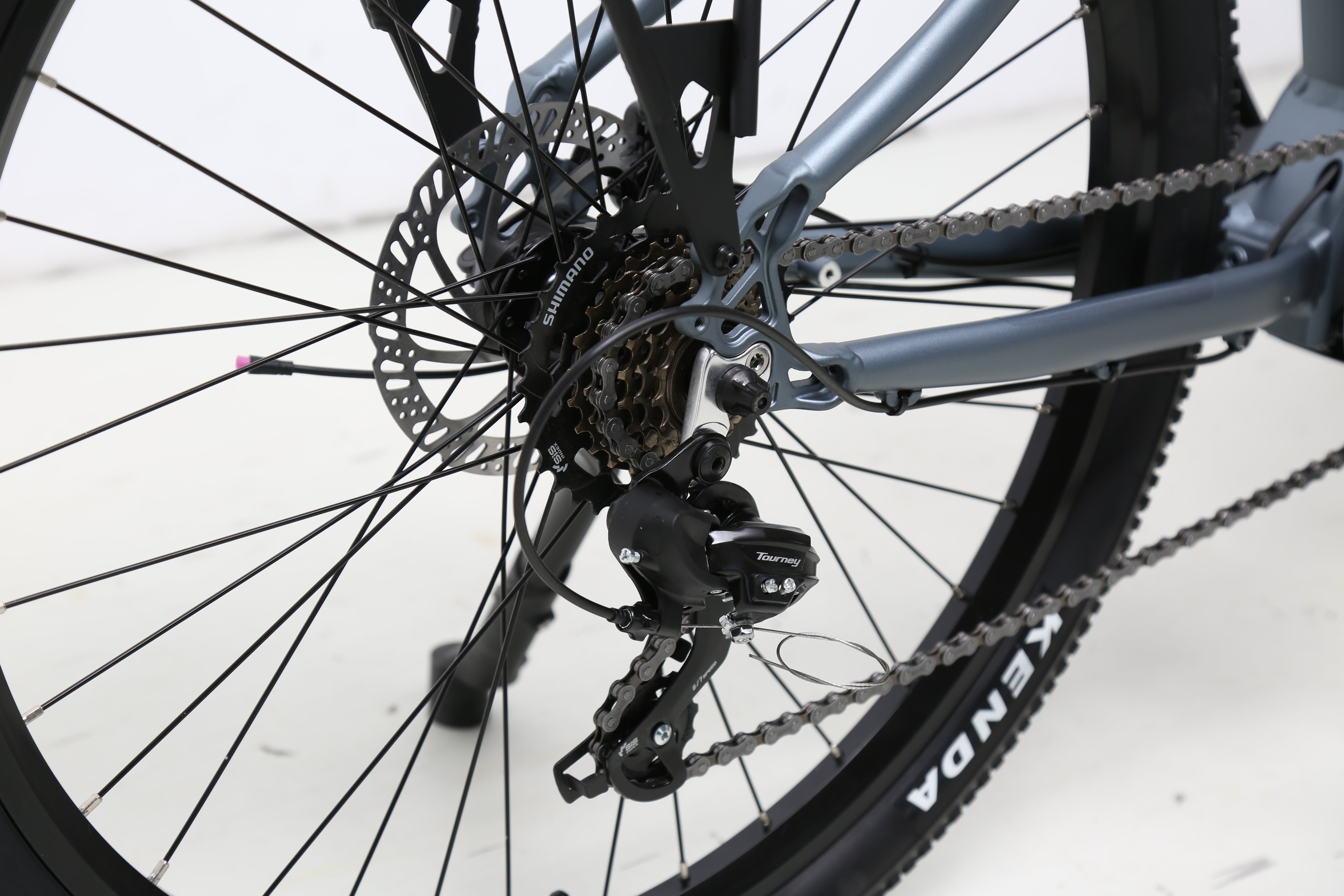

Gear Sets: SHIMANO rear 7-speed thread-on freewheel
Shifter: SHIMANO Shifter
Pedals: Alloy, with ball bearing, with reflectors, black

Brake Set: Front/Rear aluminum alloy hydraulic disc brake；Brake disc size: Front 180mm, Rear 160mm

Saddle: Vinyl top cover, padded with PU, black

Accessories:

Rear kickstand

Sand black mudguards

Rear rack

Front light

Bell

Reflectors (Compliance Standard): Front/Rear reflectors + wheel reflectors
